Advanced Glow Effects

STEP 1

As with pretty much every tutorial I’ve ever written, we begin with a radial gradient. This one is pretty harsh and goes from a reddish brown color to black. Here are the exact color codes:

Foreground color – #922f00
Background color – #000000

STEP 2

In this tutorial, we actually need a pretty intense center, so what we’ll do is duplicate the layer we just made and set the one above to a blending mode of Color Dodge. There are a few types of blending modes, darkening ones, lightening ones, colorizing ones and inverting ones. Color Dodge is probably the strongest of the lightening ones. As you can see in the screenshot, it produces a pretty full-on center

STEP 3

Now in our glow effect, it helps to have a nice textured background. So we are going to create a sort of smoky haze. To do this, create a new layer, then make sure you have white, #ffffff, and black, #000000, selected as your background and foreground colors.

Then go to Filter > Render > Clouds. This will give you the same random cloud pattern as above.

STEP 4

Now set the opacity of your layer to Overlay and 30% transparency. In some instances this would be enough, but for our needs we want it even smokier looking!

So go to Filter > Sketch > Chrome and use default settings of 4 and 7 for detail and smoothness respectively. Actually you can probably mess around with those if you want, but the defaults seem to be fine.

When you’re done, the result should look a lot smokier (once its overlayed at 30% transparency that is). You can see the result in the background of the next screenshot.

STEP 5

Now before we can start making glows, we need to have something to glow. Here’s where we break out the pen tool. If you have used the pen tool much I suggest playing around with it a little. There are some tricky things you can do with shortcuts, but for this tutorial you don’t need those.

In fact all we want to achieve are some nice curves. Fortunately this isn’t too hard. I find the trick is not to use too many points. Instead rely on the Pen Tool’s natural curving and drag the mouse out for each point so you get a big angle. In this S-curve shown above, I’ve only used three points, the starting point, the end point and one in between to give it the bend.

STEP 6

Once you have a nice curve, create a new layer. Then click on the Paintbrush Tool (B) and choose a very thin, hard brush. As you know, soft brushes are the blurry ones and hard brushes are more solid. In this case I suggest using a thickness of 3.

Note that you can have any color selected as your brush color because we’ll go over it with a layer style shortly.

STEP 7

Now switch back to the Pen Tool. You must switch tools in order to do this next bit.

Then right-click and select Stroke Path. A little dialog box will appear as in the screenshot. Choose Brush and make sure there is a tick next to Simulate Pressure. This is important as it will give your curve tapered ends which will make it rock!

Next right click again and select Delete Path.

STEP 8

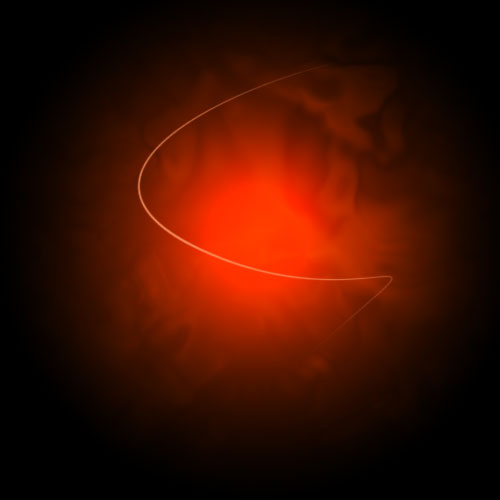

You should now have something like the above. Just a thin, cool swishy thing

STEP 9

Now we add some glows. The easiest way to make our glows is to use layer styles. And the best way to tell you what layer styles to use is to tell you to download the sample Photoshop PSD from the bottom of this page and then open it up and look through them there.

In a nutshell, I’ve added two sets of glows. To do this I first use Outer Glow and then because I want a second glow, I change the Drop Shadow settings so that it becomes a glow (you can do this by reducing the Distance and changing the blend mode to something like Color Dodge)

STEP 10
So now you have the same line but with a cool glow coming off it. The beauty of using a layer style is that you can copy and paste it to other layers. To do this you just right-click the layer and select Copy Layer Style then create a new layer and right-click and choose Paste Layer Style.

STEP 11
In this instance, I made one a little thicker by changing the paint brush size before I did the Stroke Path bit of the process. I also made a third line and erased part of it and sorta made it join the other two to look like a cool triangular shape.

STEP 12

Here I’ve added some text in and applied the same layer style to the text layers.

It’s important to pay lots of care and attention to your text. When you’re first starting out, use simple fonts and play with spacing between letters, words and sizes. You can achieve a lot with just some small tricks. Here I’ve contrasted the three words by making Glow a lot larger and in regular casing, then made Advanced and FX much smaller, with greater space between the letters and all caps.

You can control spacing with text using the Character window. If it isn’t already open go to Window > Character and it should appear. Mess about with the different settings until you learn what each controls.

STEP 13
Now we add some particles. To do this, create a new layer then select a tiny paint brush – size 3 – and just paint some dots on. It helps if they are clustered towards the center of the glow so that it looks like they are emanating from there.

STEP 14

Now that’s looking pretty cool, but it will look even cooler if we give it some subtle coloring instead of this super gaudy red.

So create a new layer, and using a radial gradient, draw a blue to white gradient as shown.

STEP 15

Then set that layer to a blending mode of Color and change the opacity to 50%.

You’ll see that it turns the image kind of bluish. I think that’s looking much cooler already, but just to go that extra step I also created a couple of extra layers, one with some faint yellow and one with faint purple. You can see them in the screenshot above.

I set each layer to blending mode of Color and thin opacities so that they all fade together.

STEP 16

And there you have it: advanced glow effects with a cool color blend and subtle smoky background combined make for a pretty great effect.
Just remember to experiment with settings and try applying the glow to different things to see how it turns out. And try different color combinations, some surprising combinations turn out really beautiful.
